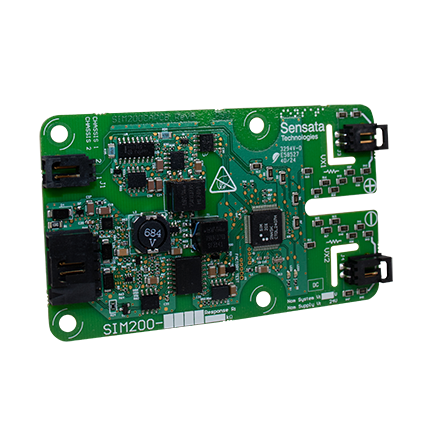

SIM200 Active Insulation Monitoring Device

The SIM200 Insulation Monitoring Device (IMD) is designed for continuous active monitoring of unearthed (Isolated Terra) DC systems including charging stations, electric vehicles, and any other system with a nominal operation above 60VDC. The SIM200 is UL2231 recognized to ensure safety at the highest standards and responds to electric hazards quickly and reliably with a patented signal injection algorithm and processing for continuous “Always On” monitoring of insulation. Additionally, this IMD provides robust self-diagnosis of its monitoring functions, modular CAN 2.0B interface for detailed system information, warning alarm with configurable level, fault alarm at 100Ω/V and configurable CAN ID for flexibility. Software and setup file downloads are available below. For CAN protocol documentation and other resources, please contact SCN.

Manufacturer

Sensata

Fieldbus/Interface

CANBUS

Product sheet

SIM200.pdf

Temperature range

-40°C ~ 85°C

Supply voltage

9-30VDC

Sensata


Sensata Technologies is a global industrial company with over 100 years of experience in developing sensor-based solutions for critical applications. The company focuses on creating a safer, cleaner, more efficient, and electrified world through its broad range of sensors, electrical protection components, and intelligent systems.

Sensata serves customers in the automotive industry, heavy equipment, industrial applications, and aerospace. Its product portfolio includes pressure and temperature sensors, position sensors, force sensors, relays, switches, battery management systems, motor and actuator solutions, and insulation monitoring devices.

The company is a leading player in electrification and offers solutions for electric vehicles, advanced air mobility, and clean energy infrastructure. Sensata works closely with its customers to meet complex technical and operational requirements, and its products are integrated into everything from passenger cars and heavy-duty vehicles to industrial machines and aircraft.
