Gigavac

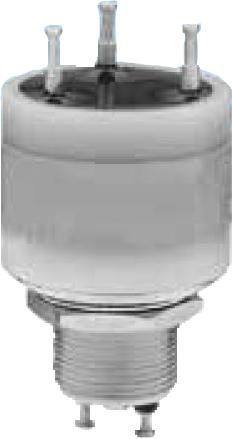

GH2 High Voltage Relay Change over (CO) 8kV

The moveable contact transfers continuity from one stationary contact to the other when the coil is energized or de-energized. Voltage isolation is then between opposing stationary contact and the moveable contact. As with our other High Voltage Relays GIGAVAC offers several design styles of vacuum and gas filled High Voltage Relays. Vacuum or gas as a dielectric each offer unique advantages depending on the application. GH2 User interchangeable coils provide for driver versatility. Mounting options in any axis. Convenient jam nut mounting with included hardware.

Manufacturer

Gigavac

Coil Voltage

12VDC; 26,5VDC; 115VDC

Contact function

Change over (CO)

Contacts

SPDT

Max current

25A

Max system voltage

8kV

Mechanical cycles

2.000.000

Product sheet

gh2.pdf

Contact Function

Change over (CO)

Gigavac


Gigavac is a U.S.-based manufacturer specializing in high-voltage relays and hermetically sealed contactors for applications that demand high reliability and safety. Founded in 2003 and headquartered in Carpinteria, California, Gigavac has been part of Sensata Technologies since 2018—a global leader in sensor systems and power control.

Gigavac’s solutions are used across a wide range of industries, including electric vehicles, energy storage, renewable energy, industrial automation, transportation, and aerospace. The company focuses on delivering robust components capable of withstanding extreme environmental conditions, high voltages, and demanding load cycles, making them ideal for modern electrified systems.

All products are manufactured to strict quality standards and are often implemented in safety-critical applications where performance and reliability are essential. With expertise in high-voltage control and a strong drive for innovation, Gigavac has established itself as a key supplier for next-generation power systems.
