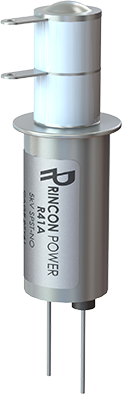

R41A High Voltage relays 5kV Normally open (NO)

Voltage Rating:5kV Current Rating:30A Contact Form:A = Normally Open Contact Arrangement:SPST-NO Application:Make/Break Load Switching R41A series high voltage relays are designed to meet demanding load requirements while maintaining a compact form factor. The RF-rated design ensures exceptional performance in applications requiring precise switching and reliable isolation up to 5kV. Equipped with tungsten contacts, the R41A delivers enhanced make and break load switching capabilities and can continuously carry up to 10 amps. Common applications include antenna tuning units (ATUs) and high voltage test equipment. Featuring a Single Pole Single Throw, Normally Open (SPST-NO) configuration, this relay offers a simple yet effective solution for isolation, utilizing a single stationary contact to maintain isolation until coil power is applied.

Manufacturer

Rincon Power

Coil Voltage

12VDC; 26,5VDC

Contacts

SPST

Max current

30A

Max system voltage

5kV

Mechanical cycles

2.000.000

Product sheet

r41-series-datasheet.pdf
