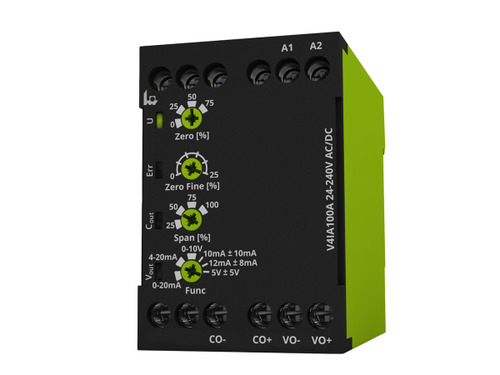

Current Monitor, V4IA100A 24-240V AC/DC

​The V4IA100A 24-240V AC/DC is a multifunctional single-phase current transducer designed for precise measurement and conversion of AC and DC currents up to 100A. Operating with a supply voltage range of 24 to 240V AC/DC, it offers four selectable input ranges—25A, 50A, 75A, and 100A—allowing customization to specific application requirements. The device provides six selectable analog outputs, including 0–20mA, 4–20mA, 0–10V, 10mA ±10mA, 12mA ±8mA, and 5V ±5V, facilitating seamless integration with various control and monitoring systems. Equipped with an integrated Hall sensor, the V4IA100A ensures accurate and galvanically isolated current measurements. Its compact 45mm DIN-rail mountable design allows for straightforward installation in control panels. LED indicators provide clear visual feedback: a green LED indicates the presence of supply voltage, a red LED signals output overdriving, and yellow LEDs show the active status of current and voltage analog outputs. Engineered for precision and durability, the V4IA100A is an ideal solution for monitoring and transmitting critical process data in various industrial and commercial applications. - Current transducer 1 phase VEO series - Measuring range: 25A, 50A, 75A, 100A AC/DC - measuring output: 0(4)..20mA DC, 0..5VDC, 0..10VDC - Current measuring system: integrated HALL transducer - Special features: Bidirectional and unidirectional current measurement, 6kV isolation voltage, RANGE MAGNIFIER. - Supply voltage 48 - 240V AC; 24 - 240V DC - Construction width 45 mm
