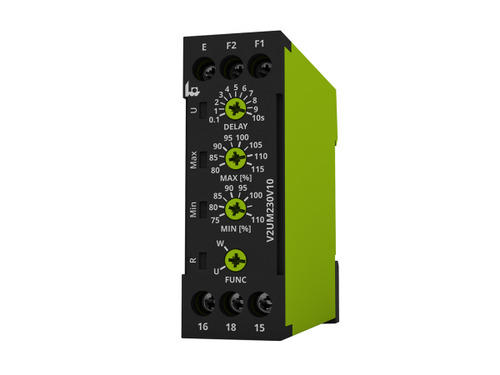

Voltage Monitor, V2UM230V10

​The V2UM230V10 is a single-phase voltage monitoring relay designed to ensure the stability and safety of electrical systems operating at 230V AC. It offers multiple monitoring functions, including overvoltage, undervoltage, and window (band) monitoring, providing comprehensive protection against voltage anomalies. The relay features adjustable thresholds for both minimum and maximum voltage levels, allowing precise customization to specific application requirements. An adjustable hysteresis setting enables fine-tuning of the response to voltage fluctuations. Equipped with a single changeover contact rated at 250V AC and 5A, the V2UM230V10 ensures reliable switching performance. Its compact 22.5mm DIN-rail mountable design facilitates straightforward integration into control panels. LED indicators provide clear visual feedback: a green LED indicates the presence of supply voltage, a red LED signals fault conditions based on set parameters, and a yellow LED shows the status of the output relay. Engineered for precision and durability, the V2UM230V10 is an ideal solution for protecting sensitive equipment from voltage irregularities in various industrial and commercial applications. - Monitoring relays VEO series - Voltage monitoring 1-phase - Multifunction - measuring voltage = supply voltage - Supply voltage 24 V DC or 230V AC/DC - 1 changeover contact - construction width 22,5 mm - compact industrial design
