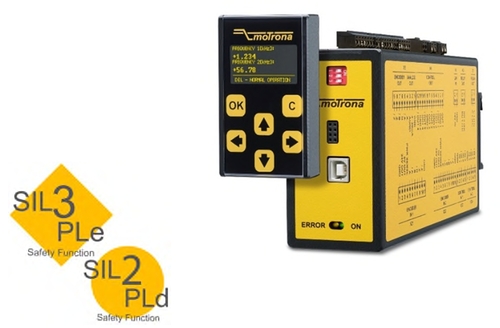

DS250 and DS260 Safety motion monitor

SIL2 and PLd certification Safety functions equivalent to EN 61800-5-2 (SS1, SS2, SOS, SLS, SDl, SSM, SLI, SBC, STO, SMS) 1 incremental encoder input with format A, /A, B, /B, Z, /Z [HTL differencial, RS422] 8 control inputs [HTL / PNP] Input frequency up to 500 kHz 2 relay outputs 5... 250 VAC / VDC (NO) 4 x 2 control outputs with push-pull characteristic, short-circuit-proof, [HTL], antivalent or equivalent redundant or simply used Safety related 14 bit analog output for 4 ... 20 mA (scalable) Signal splitter Power supply 18 ... 30 V Wire monitoring of the sensor signals Compact housing for 35 mm mounting top hat rail (according to EN 60715) USB interface in combination with the user interface OS6.0 for the parameterization of the safety speed monitor BG200 operator panel for easy parameterization and display (optional)

Manufacturer

Motrona

Product sheet

DS250_DS260.pdf

Motrona


Motrona is a German manufacturer specializing in advanced electronic solutions for industrial automation and drive technology. The company offers a wide range of products including safety relays, digital indicators, motion controllers, and signal converters.

Their safety relays monitor speed, direction of rotation, standstill, and position, ensuring maximum reliability and safety in machine and plant control. The digital indicators, such as the touchMATRIX® series, provide precise monitoring and display for nearly all application areas, with high dynamics and short response times.

Motrona’s motion controllers are known for their high precision and are used in applications such as synchronization, flying cuts, rotary cross cutters, tube bag machines, and position control. These controllers can be programmed for multiple motion applications via easy firmware downloads.

The signal converters offer maximum flexibility with extremely short conversion times and high cut-off frequencies. They support various interfaces and signal types, including HTL, TTL, analog, SSI, and SinCos, enabling seamless system integration.

With over 40 years of experience, Motrona is a trusted specialist offering professional support in project development and problem-solving for industrial automation.
