Rincon Power

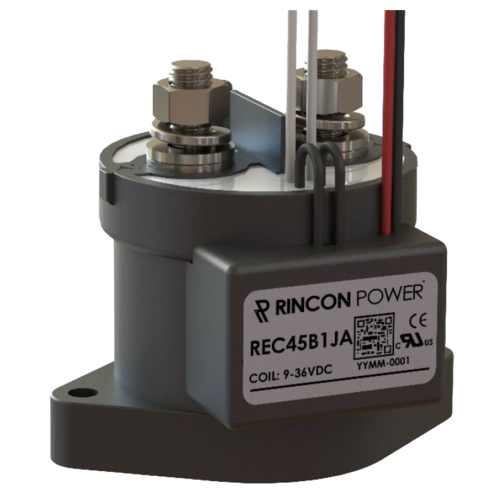

REC45 Hermetically Sealed Contactor 500A / 1000VDC

Hermetic seal with gas fill Optional auxiliary contacts – for main position feedback Integrated coil economizer to reduce coil holding power Meets RoHS 2011/65/EU CE certified recognized (File E536110). Please refer to UL file for specific part numbers that are recognized. CHARACTERISTIC Contact Arrangement Form X, SPST NO Max Switching Voltage 1000VDC Continuous Current (2x127mm2 conductor) 500A Overload Current 1 minute 1,000A 5 Minutes 650A Operating Temperature -40˚C to 85˚C Ingress Protection Exceeds IP69, (Hermetically sealed) Mechanical life 500,000

Manufacturer

Rincon Power

Added function

None

Auxilary contact

Yes

Coil Voltage

12VDC; 24VDC; Internal PWM

Contact config

Normally open (NO)

Continuous current

500A

IP code rating

IP69K

Max current

3000A

Mechanical cycles

500.000

Mounting

Up-Right

Product sheet

REC45.pdf

Rincon Power

Rincon Power.png

Rincon Power is a U.S.-based manufacturer of high-performance power components for electrified and demanding environments. The company specializes in hermetically sealed high-voltage components used in applications such as electric vehicles, energy storage, industrial automation, aerospace, marine systems, and renewable energy.

The product range includes high-voltage DC contactors rated up to 1200 A and 1500 V. These contactors are designed to withstand extreme environmental conditions and are available in multiple form factors, including models with bidirectional switching and integrated auxiliary contacts.

Rincon Power also offers high-voltage battery disconnects with continuous current ratings up to 800 A and system voltages up to 1500 V. These switches are hermetically sealed and gas-filled to ensure safe operation in challenging conditions.

For accurate current measurement, the company provides fluxgate current sensors that deliver high precision and stability, ideal for applications requiring contactless measurement with minimal temperature drift.

Additionally, Rincon Power manufactures high-voltage relays rated up to 100 kV and 110 A. These relays are RF-rated for high reliability and available in various configurations.

Read more: Rincon Power
