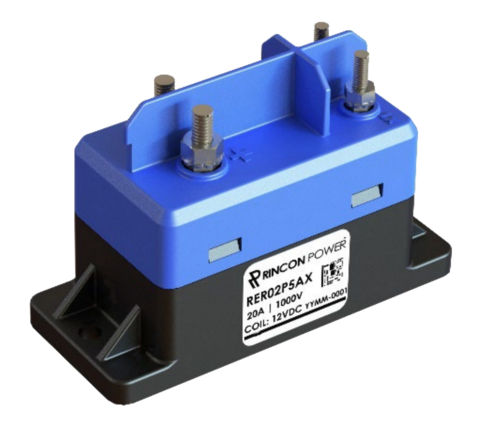

RER02P5 High Voltage Contactor 40A up to 1000VDC

SPECIFICATIONS Contact Arrangement Form X, SPST NO Max Switching Voltage 1000 VDC Continuous Current (15mm2 conductor) 40A Overload Current 30 seconds 80A 1 hour 30A Max Break – 30A @ 450V 5 cycles Max Short Circuit Current -0.5 second 200 A Min Insulation Resistance 1,000 Mohm @ 500VDC Contact Voltage Drop (Max) 50mV @ 10A Operate Time (Max, incl bounce) 30ms Release Time (Max) 10ms Shock - Functional, 1/2 Sine, 11ms 20G Shock – Destructive, 1/2 Sine, 11ms 50G Operating Temperature -40˚C to 85˚C Ingress Protection IP67 Mechanical life 200,000 cycles Nominal Voltage 12 VDC or 24 VDC Coil Power at Nominal Voltage 3W

Manufacturer

Rincon Power

Added function

None

Auxilary contact

None

Coil Voltage

12VDC; 24VDC

Contact config

Normally open (NO)

Continuous current

20A

IP code rating

IP67

Max current

80A

Mechanical cycles

1.000.000

Mounting

Up-Right

Product sheet

RER02P5.pdf

Rincon Power

Rincon Power.png

Rincon Power is a U.S.-based manufacturer of high-performance power components for electrified and demanding environments. The company specializes in hermetically sealed high-voltage components used in applications such as electric vehicles, energy storage, industrial automation, aerospace, marine systems, and renewable energy.

The product range includes high-voltage DC contactors rated up to 1200 A and 1500 V. These contactors are designed to withstand extreme environmental conditions and are available in multiple form factors, including models with bidirectional switching and integrated auxiliary contacts.

Rincon Power also offers high-voltage battery disconnects with continuous current ratings up to 800 A and system voltages up to 1500 V. These switches are hermetically sealed and gas-filled to ensure safe operation in challenging conditions.

For accurate current measurement, the company provides fluxgate current sensors that deliver high precision and stability, ideal for applications requiring contactless measurement with minimal temperature drift.

Additionally, Rincon Power manufactures high-voltage relays rated up to 100 kV and 110 A. These relays are RF-rated for high reliability and available in various configurations.
