Rincon Power

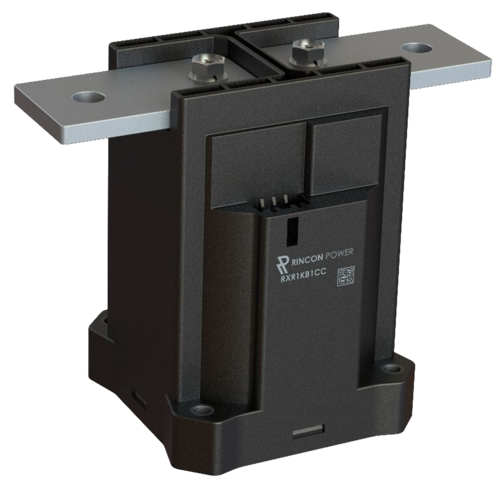

RXR1K High Voltage Contactor 1200A 1500VDC (2500V)

SPST Normally Open High Voltage Contactors. Hermetic Ceramic Seal with gas fill for superior carry and switching performance. Bi-Directional main contacts. Mechanically linked SPDT auxiliary contacts for accurate main position feedback. Meets RoHS 2011/65/EU. RoHS / REACH compliant. UL 60947-4 pending.

Manufacturer

Rincon Power

Added function

None

Auxilary contact

Yes

Coil Voltage

12VDC; 24VDC; 48VDC

Contact config

Normally open (NO)

Continuous current

1000A; 1200A

IP code rating

IP69K

Max current

10000A

Mechanical cycles

200.000

Mounting

Up-Right

Product sheet

RXR1K.pdf

Rincon Power

Rincon Power.png

Rincon Power is a U.S.-based manufacturer of high-performance power components for electrified and demanding environments. The company specializes in hermetically sealed high-voltage components used in applications such as electric vehicles, energy storage, industrial automation, aerospace, marine systems, and renewable energy.

The product range includes high-voltage DC contactors rated up to 1200 A and 1500 V. These contactors are designed to withstand extreme environmental conditions and are available in multiple form factors, including models with bidirectional switching and integrated auxiliary contacts.

Rincon Power also offers high-voltage battery disconnects with continuous current ratings up to 800 A and system voltages up to 1500 V. These switches are hermetically sealed and gas-filled to ensure safe operation in challenging conditions.

For accurate current measurement, the company provides fluxgate current sensors that deliver high precision and stability, ideal for applications requiring contactless measurement with minimal temperature drift.

Additionally, Rincon Power manufactures high-voltage relays rated up to 100 kV and 110 A. These relays are RF-rated for high reliability and available in various configurations.

Read more: Rincon Power
