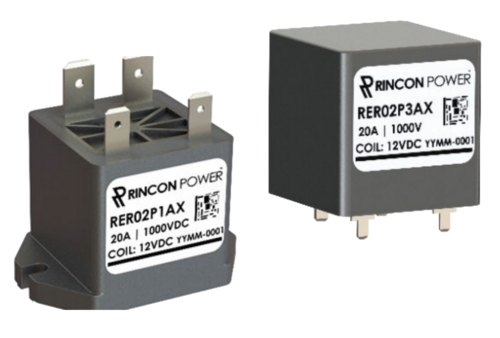

RER02 High Voltage Contactor 20A up to 1000VDC

SPECIFICATIONS Contact Arrangement Form X, SPST NO Max Switching Voltage 1000 VDC Continuous Current (15mm2 conductor) 20A Overload Current 30 seconds 80A 1 hour 30A Max Break – 30A @ 450V 5 cycles Max Short Circuit Current -0.5 second 200 A Min Insulation Resistance 1,000 Mohm @ 500VDC Contact Voltage Drop (Max) 50mV @ 10A Operate Time (Max, incl bounce) 30ms Release Time (Max) 10ms Shock - Functional, 1/2 Sine, 11ms 20G Shock – Destructive, 1/2 Sine, 11ms 50G Operating Temperature -40˚C to 85˚C Ingress Protection IP67 Mechanical life 200,000 cycles Nominal Voltage 12 VDC or 24 VDC Coil Power at Nominal Voltage 3W

Manufacturer

Rincon Power

Added function

None

Auxilary contact

None

Coil Voltage

12VDC; 24VDC

Contact config

Normally open (NO)

Continuous current

20A

IP code rating

IP69K

Max current

80A

Mechanical cycles

200.000

Mounting

PCB; Up-Right

Product sheet

RER02.pdf

Rincon Power

Rincon Power.jpg

Rincon Power are experts in the design and manufacture of hermetically sealed high power switching devices. Looking for a power switching device to suit your application?

With a collaborative customer approach, we provide innovative solutions while advancing products for an electrified future. Leveraging experience and agility, our team responds efficiently as customer applications evolve.

Our team has a proven track record, meeting customer needs by delivering a high standard of quality on time. Our flexible manufacturing system enables most items to ship from stock or within short lead times.

Customer service isn't a department. It is a company-wide commitment to personal engagement and partnership for success with our customers.
