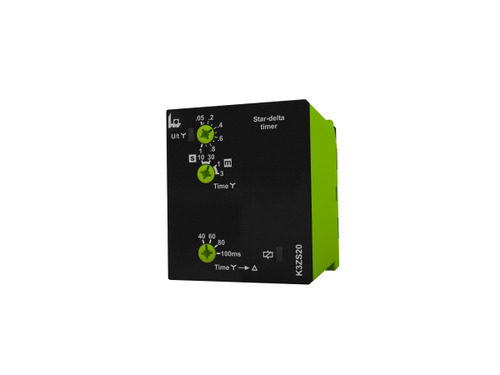

Star Delta timer, K3ZS20 12-240V AC/DC

​The K3ZS20 is a star-delta timer relay engineered to manage the transition between star and delta configurations during motor startups, effectively reducing inrush currents and mechanical stress. Operating within a supply voltage range of 12 to 240V AC/DC, it offers broad compatibility with various industrial systems. The relay provides four selectable star operation times—10 seconds, 30 seconds, 1 minute, and 3 minutes—allowing precise control over motor startup sequences. Transition intervals from star to delta are adjustable among 40 ms, 60 ms, 80 ms, and 100 ms to accommodate specific application requirements. Equipped with two changeover contacts, the K3ZS20 ensures reliable switching capabilities. Its compact 38mm housing is designed for DIN-rail mounting, facilitating easy installation in control panels. Clear LED indicators provide real-time status updates: a green LED signals supply voltage presence and delta contact operation, a flashing green LED indicates the active star timing period, and a yellow LED displays the status of the star contact. Engineered for durability and precision, the K3ZS20 is an ideal solution for optimizing motor startup procedures in industrial environments. - Time relay series KAPPA - Star-delta - 4 time ranges (star time) - supply voltage 12-240V AC/DC - 2 changeover contacts - Pluggable on 11-pole socket - width 38mm - cap dimension 45mm

Manufacturer

Tele Haase

IP code rating

IP40

Product sheet

k3zs20-12-240v-acdc_en.pdf

Temperature range

-25°C ~ 70°C

Supply voltage

12-240V

Tele Haase


 Tele Haase is an Austrian company founded in 1963 and has established itself as a leading provider of industrial electronics solutions. Headquartered in Vienna, the company is known for its strong culture of innovation and its focus on quality and customer service. Tele Haase specializes in the development and manufacturing of timing relays, monitoring relays, current monitoring devices, protection relays, and IoT solutions. Their products are primarily used in automation and industrial applications and are renowned for their reliability and high performance. They serve industries such as manufacturing, energy, building automation, transportation and infrastructure, as well as water and wastewater. Their products play a critical role in ensuring the smooth and efficient operation of machinery and systems across these sectors. One of Tele Haase’s key strengths is its strong commitment to research and development, enabling them to deliver cutting-edge technologies and customized solutions tailored to specific customer needs. Additionally, the company values sustainability and continuously works to improve its processes and products to minimize environmental impact.
