Wenglor

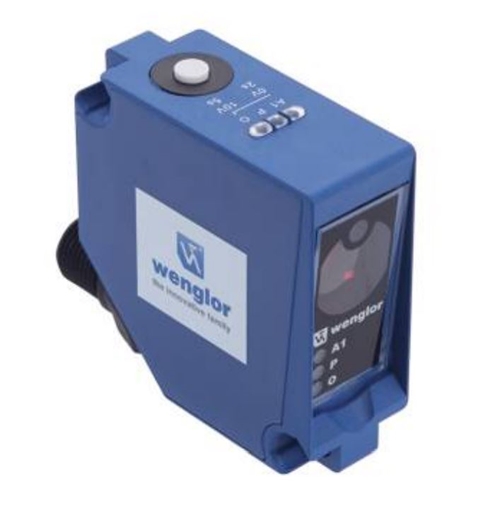

P1PY107 High performance distance sensor

The sensors function in accordance with the principle of transit time measurement with laser class 1. The wintec with Dynamic Sensitivity technology (DS) enables previously unattainable reception sensitivity even with very weak signals. As a result, the sensors have a large working range of up to 10 m and can reliably detect dark or shiny objects even at extreme angles. wintec also works very reliably in adverse ambient conditions, e.g., caused by ambient light or dirt. Extensive condition monitoring functions additionally enable predictive maintenance and trouble-free operation. Analog output 0…10 V. Intuitive operating concept. No interactive influence. Wide working range and precise detection thanks to DS technology.

Manufacturer

Wenglor

Product sheet

P1PY107.pdf

IP classification

IP67; IP68

Housing

Cuboid compact

Housing material

Plastic

Measuring range

0-10000mm

Communication Interface

Analog 0-10V; IO-Link; NC; NO; NPN; PNP

Electrical connection

M12 connector

Supply voltage

18-30VDC

Photocell type

High performance distance sensor

Wenglor


Wenglor is a German family-owned technology company headquartered in Tettnang, Baden-Württemberg. Since its founding in 1983, the company has grown into a global player in smart sensors, image processing, and safety technology for industrial automation. In addition to photoelectric and inductive sensors, the portfolio also includes ultrasonic sensors, fluid sensors, 2D/3D sensors, vision systems, barcode readers, and safety technology.

The product range also includes advanced vision technologies, such as smart cameras and 3D sensors, as well as the uniVision software platform for image analysis. Wenglor has subsidiaries in 28 countries worldwide and continues to expand its global presence.

The company has also acquired several specialized firms, such as TPL Vision, experts in LED lighting for machine vision, and deevio, which focuses on AI and data analysis – all to strengthen its position in the future of automation.
