Wenglor

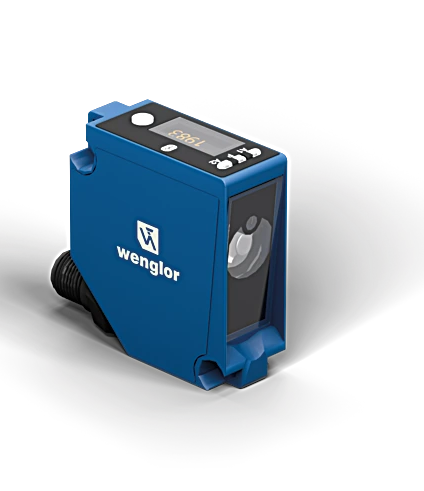

P1PY217, Laser Distance Sensor Time of Flight

The Wenglor P1PY217 is an advanced Time-of-Flight sensor that uses blue light to deliver reliable and stable distance measurements—even on challenging surfaces such as dark, shiny, transparent, or hot materials. With its robust design, high measurement accuracy, and long range of up to 5 meters, it’s an excellent choice for factory automation and quality control in tough industrial environments. Equipped with a clear OLED display, intuitive Bluetooth setup, and IO-Link support, the sensor is easy to install, configure, and integrate into existing systems. Key Features of the P1PY217: - Blue light ensures reliable detection of difficult surfaces - Sensing range up to 5,000 mm - Compact and industrial-grade housing - User-friendly display and wireless setup via app - IO-Link for seamless communication and monitoring

Manufacturer

Wenglor

Product sheet

Data_Sheet_P1PY217_EN.PDF

IP classification

IP67; IP68

Housing material

Plastic

Measuring range

0-5000mm

Communication Interface

IO-Link; PNP; Analog

Supply voltage

18-30VDC

Wenglor


Wenglor is a German family-owned technology company headquartered in Tettnang, Baden-Württemberg. Since its founding in 1983, the company has grown into a global player in smart sensors, image processing, and safety technology for industrial automation. In addition to photoelectric and inductive sensors, the portfolio also includes ultrasonic sensors, fluid sensors, 2D/3D sensors, vision systems, barcode readers, and safety technology.

The product range also includes advanced vision technologies, such as smart cameras and 3D sensors, as well as the uniVision software platform for image analysis. Wenglor has subsidiaries in 28 countries worldwide and continues to expand its global presence.

The company has also acquired several specialized firms, such as TPL Vision, experts in LED lighting for machine vision, and deevio, which focuses on AI and data analysis – all to strengthen its position in the future of automation.
