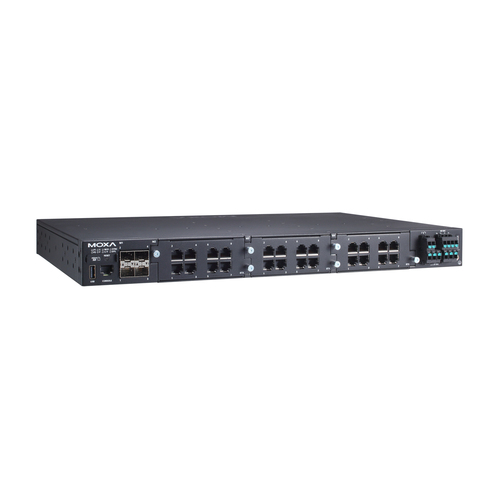

RKS-G4028 Series

The RKS-G4028 Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as power substation automation systems (IEC 61850-3, IEEE 1613), railway applications (EN 50121-4), and factory automation systems. The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on wiring costs. The modular design of the RKS-G4028 Series also makes network planning easy, and allows greater flexibility by letting you install up to 28 Gigabit ports with various connector types. Features and Benefits Meets a wide range of demands from Fast Ethernet to full Gigabit industrial networks (up to 28 Gigabit ports) Modular interfaces for flexible connector type combinations Support for IEEE 802.3bt PoE for up to 90 W output per port High EMC immunity compliant with IEC 61850-3 and IEEE 1613 Hardware-based IEEE 1588 PTP for high-precision time synchronization Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy -40 to 75°C operating temperature range Supports MXstudio for easy, visualized industrial network management Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
